TensorBoard: A Comprehensive Overview

Frank Morales Aguilera, BEng, MEng, SMIEEE

Boeing Associate Technical Fellow /Engineer /Scientist /Inventor /Cloud Solution Architect /Software Developer /@ Boeing Global Services

Introduction

In machine learning, where models are trained on vast datasets to solve complex problems, understanding the inner workings of these models is paramount. This is where TensorBoard, a powerful visualization toolkit developed by Google, comes into play. TensorBoard provides tools to visualize and analyze various aspects of machine learning experiments, including training metrics, model graphs, and distributions of weights and biases. By presenting complex data in intuitive visual formats, TensorBoard enables researchers and engineers to gain valuable insights into their models, facilitating debugging, optimization, and overall understanding.

TensorBoard is a powerful visualization toolkit developed in the TensorFlow ecosystem[1]. It is designed to help understand, debug, and optimize TensorFlow programs, providing a suite of visualization tools to make machine learning experimentation more understandable and accessible[1].

Concept

At its core, TensorBoard revolves around logging data during the training process. As the model learns from the data iteratively, key metrics such as loss, accuracy, and learning rate are recorded regularly. These logs are then ingested by TensorBoard, which transforms them into interactive graphs and charts. The most fundamental visualization is the scalar plot, which displays the evolution of a single metric over time. By observing the trends in these plots, one can quickly assess whether the model is learning effectively, overfitting or underfitting and whether the hyperparameters need adjustment.

TensorBoard operates on the principle of making the invisible visible[1]. In machine learning, this means providing visual representations of everything from metrics such as loss and accuracy to more complex data structures like model graphs [1,2].

The primary goal of TensorBoard is to aid in the machine learning workflow. It provides the measurements and visualizations needed during machine learning [2]. This includes tracking experiment metrics like loss and accuracy, visualizing the model graph, projecting embeddings to a lower dimensional space, and much more[2].

Main Features

TensorBoard offers a wide range of features that cater to different aspects of machine learning experimentation[1, 3]:

Metrics Visualization: TensorBoard allows tracking and visualizing key metrics such as loss and accuracy over time[1, 3]. This helps in understanding the model’s performance across different epochs or iterations.
Model Graphs: It provides functionality to visualize the model graph, assisting the users in understanding and debugging the TensorFlow computations[1, 3].
Histograms: TensorBoard can display histograms of weights, biases, or other tensors as they change over time[1, 3]. This is particularly useful for understanding how the distributions of parameters or layer activations change over time.
Embedding Projector: TensorBoard includes an embedding projector to visualize high-dimensional data projected down to three dimensions[1, 3]. This can help understand and interpret embeddings.
Image and Audio Data Display: TensorBoard can display image and audio data, which can be helpful when working with datasets that include these data types [1].

Correlation Graphics

TensorBoard provides several correlation graphics that can help understand the relationships between different variables in the model[4, 5]. For example, it allows the visualization of multiple graphs in one plot, which can be helpful when comparing the performances of several models[4].

In addition, TensorBoard’s Mesh Plugin is designed to display 3D point clouds or meshes (triangulated point clouds), allowing the user to interact with the rendered objects[5]. This can be particularly useful when working with 3D shapes or point cloud data[5].

How to Use TensorBoard

Using TensorBoard involves a few key steps[2, 6]:

Setup: First, you need to set up TensorBoard in your environment. This involves importing the necessary libraries and creating a SummaryWriter instance[6].
Logging: During the training process, you can log various metrics (like loss and accuracy), model parameters, or even complex data types like images and audio[2, 6].
Visualization: Once the data is logged, you can start TensorBoard and point it to the directory where the logs are stored. TensorBoard will then read these logs and provide a web-based interface where you can interactively explore the visualizations[2, 6].

However, TensorBoard goes beyond simple scalar plots. It allows for the visualization of more complex relationships between different metrics. One crucial correlation that TensorBoard can reveal is the relationship between the training loss and the norm of the gradients. The training loss quantifies the error the model makes on the training data. At the same time, the norm of the gradients represents the magnitude of the updates applied to the model’s parameters during backpropagation. A strong negative correlation between these two metrics indicates that the model learns effectively as the loss decreases with each update. Conversely, a weak or positive correlation might signal issues like a vanishing gradient problem or an excessively high learning rate.

TensorBoard also offers visualizations for higher-dimensional data, such as histograms and distributions. Histograms display the frequency distribution of a particular metric, providing insights into the range and concentration of its values. For instance, a histogram of the model’s weights can reveal whether they are evenly distributed or skewed towards specific values, which might indicate potential problems like dead neurons or exploding gradients. Distributions show how a metric varies across dimensions, such as various neural network layers. This can help identify layers that could be learning more effectively or contribute disproportionately to the overall error.

Case study

I developed a notebook thoroughly tested in Google Colab to demonstrate the capabilities of TensorBoard. This notebook was implemented to evaluate the fine-tuned model using the base meta-llama/Meta-Llama-3–8B and dataset McGill-NLP/medal or McGill-NLP/medal-hugging face. Using this notebook, we can dive into the ecosystem of the visualization engine of TensorBoard. For example, in the training process for the new fine-tune model with a learning rate of 0.0002 and number of epoch 25 with 1050 steps, the norm of the gradients during training is shown in Figure 1; for the interpretation of this, I did use Gemini Advanced; the report is following:

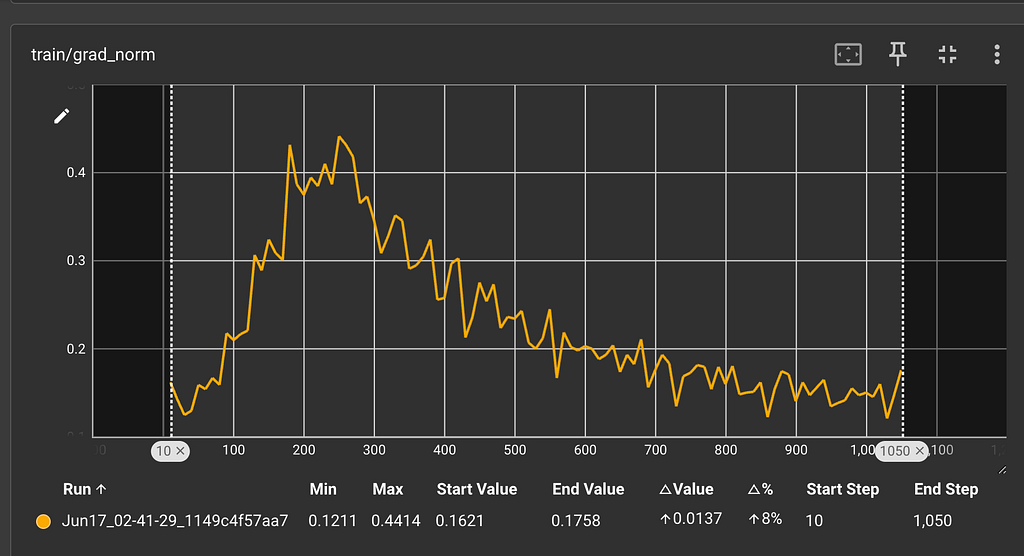

Figure 1: The norm of the gradients during training

The TensorBoard graph illustrates the evolution of the norm of gradients (train/grad_norm) throughout the training process of a machine learning model, likely a neural network. The x-axis represents the training steps, while the y-axis shows the magnitude of the grad_norm.

Key Observations:

Initial Instability: The training begins with a relatively low grad_norm, which quickly spikes around step 100, indicating significant adjustments to the model’s parameters. This phase is characterized by substantial fluctuations, suggesting the model actively explores the parameter space to identify optimal values.
Decreasing Trend with Fluctuations: From step 100 onwards, the grad_norm generally decreases, but with persistent fluctuations. This signifies that the model has found a general direction for parameter updates and is gradually refining its knowledge. The present volatility implies that the model is fine-tuning its understanding, albeit with more minor adjustments.
Slow Convergence: After step 500, the rate of decrease in the grad_norm slows down, and the fluctuations become less pronounced. This suggests that the model is approaching a stable state where updates are smaller and less frequent.
Potential for Further Improvement: Even at the end of the observed training steps (1050), the grad_norm has yet to flatten out completely. This indicates that there might still be room for the model to improve through further training or adjusting the learning rate.

Interpretations:

The model is actively learning and improving, as evidenced by the overall decreasing trend of the grad_norm.
The learning process is dynamic, with fluctuations in gradient magnitudes throughout training.
The initial large fluctuations might be due to a high learning rate, which could be adjusted as training progresses.
The model must still reach its full potential and may benefit from further training or optimization.

Additional Considerations:

Monitoring the validation loss alongside the grad_norm is crucial to ensure the model isn’t overfitting.
The specific behaviour of grad_norm can vary depending on the model’s architecture, the dataset, and the chosen optimization algorithm.
Further analysis, such as examining the loss curves and individual parameter updates, can provide more detailed insights into the training dynamics.

Overall, this graph suggests that the training process is progressing well, but there’s potential for further improvement by fine-tuning the learning rate and monitoring for overfitting.

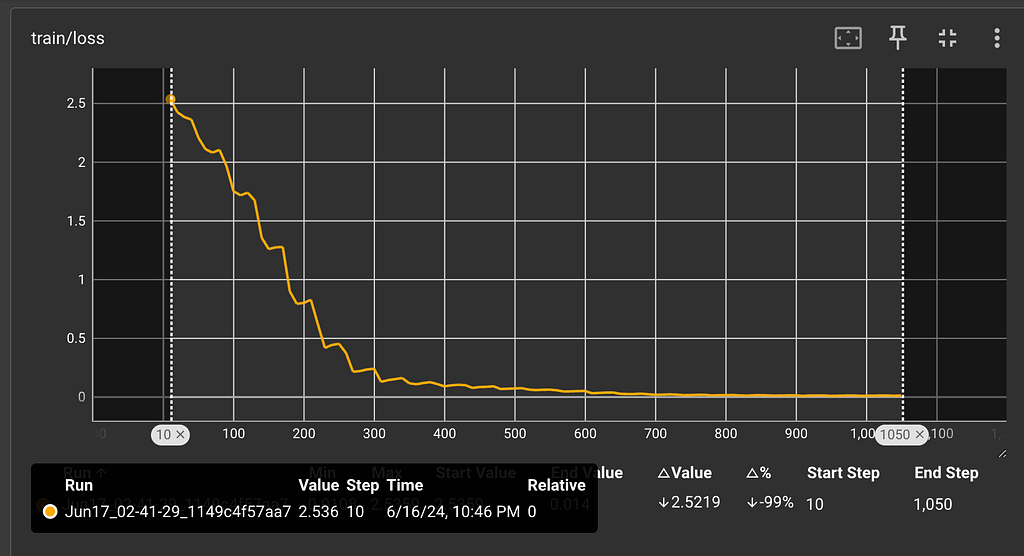

Figure 2: Evolution of Training Loss During Model Fine-tuning

In Figure 2, we represent the correlation train/loss, and the Gemini Advanced report is the following:

The TensorBoard graph illustrates the evolution of training loss over time during the fine-tuning of a machine learning model, likely a neural network. The x-axis represents the training steps, while the y-axis represents the magnitude of the loss.

Key Observations:

Initial Rapid Decrease: The training loss starts at approximately 2.5 and rapidly decreases in the initial steps, indicating the model is learning quickly in the early stages of fine-tuning.
Gradual Stabilization: As training progresses, the decrease in the loss slows down. The curve becomes smoother and eventually plateaus around step 700, suggesting that the model is approaching convergence.
Minimal Fluctuation: The absence of significant fluctuations in the loss curve after the initial stages implies that the learning process is relatively stable. The model is consistently improving and not experiencing large swings in performance.
Low Final Loss: The final loss value is around 0.014, which is relatively low and indicates that the model performs well on the training data.

Interpretation:

Overall, the graph suggests a successful fine-tuning process. The model has learned effectively from the training data, as evidenced by the significant reduction in loss. The gradual stabilization of the loss curve and low final value indicate that the model has likely converged to a good solution.

Additional Considerations:

Overfitting: While the training loss is low, monitoring the validation loss (not shown in this graph) is crucial to ensure that the model does not overfit the training data. If the validation loss increases while the training loss decreases, it could be a sign of overfitting.
Hyperparameters: The specific values of hyperparameters, such as the learning rate, batch size, and optimizer, can influence the shape of the loss curve. The smooth curve observed here suggests that the chosen hyperparameters are well-suited for this model and dataset.

Next Steps:

Evaluate on Validation Data: To assess the model’s generalization ability, evaluate its performance on a separate validation dataset.
Fine-tune Hyperparameters: If the validation loss indicates overfitting or underfitting, consider adjusting the hyperparameters to further optimize the model’s performance.
Deploy and Monitor: Once satisfied with the model’s performance, deploy it to a production environment and continue monitoring its performance to ensure it maintains its effectiveness over time.

Conclusion

TensorBoard is a versatile tool that plays a crucial role in machine learning experimentation. It provides many features to visualize and understand complex data, making developing and debugging machine learning models more intuitive and accessible.

TensorBoard plays a pivotal role in developing and deploying machine learning models. Its ability to visualize complex data in a user-friendly and interactive manner empowers researchers and practitioners to gain deep insights into the training process, identify potential issues, and make informed decisions to optimize model performance. As machine learning advances and models become increasingly intricate, tools like TensorBoard will remain essential for navigating the complexities of this rapidly evolving field.
